25-200kN Glass Fiber Asphalt Geogrid High Tensile Fiberglass Geogrid Coated Bitumen Grid
1.Product Description

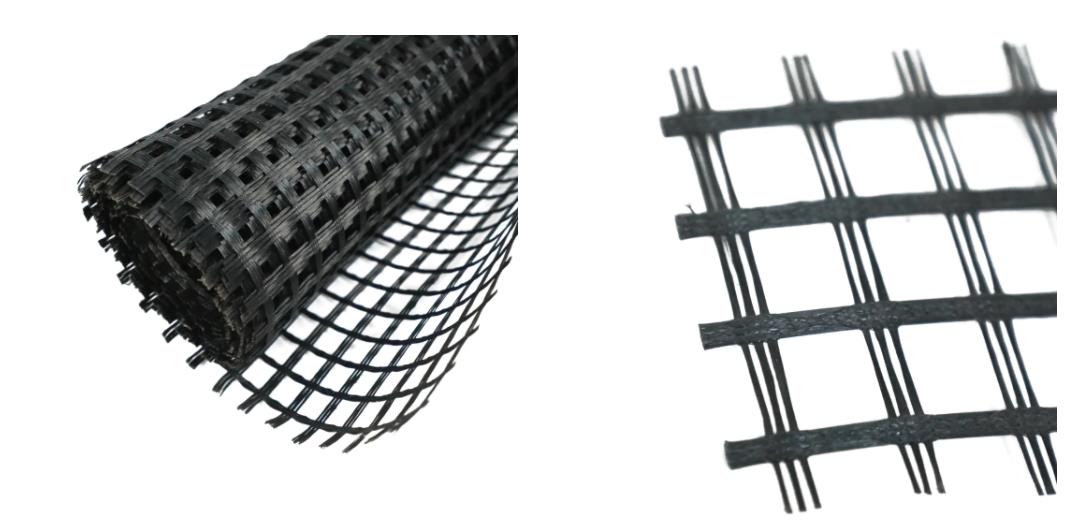

Fiberglass Geogrid is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is made by weaving
and covering fiberglass filament. It is featured by high vertical and horizontal tensile strength, low unit extension, high
flexibility, and favorable high and low temperature resistance. The products after surface covering own the favorable property of
alkali resistance and aging resistance.
| SPECIFICATION | EGA3030 | EGA5050 | EGA8080 | EGA100100 | EGA120120 | EGA150150 | EGA200200 |
Ultimate Strength
(KN/M) | MD | ≥30 | ≥50 | ≥80 | ≥100 | ≥120 | ≥150 | ≥200 |
| CMD | ≥30 | ≥50 | ≥80 | ≥100 | ≥120 | ≥150 | ≥200 |
| elongation(%) | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 |
| Grid Size, mm | 12.5-40.00 |
| Width | 6 Meter Maximum |
2.Product Funtion
* High tensile strength, High tear-resistence. High occlusive force with gravel and soil.
* Low creep deformation, low creep deformation.
* Good anti-aging performance.
3.Application

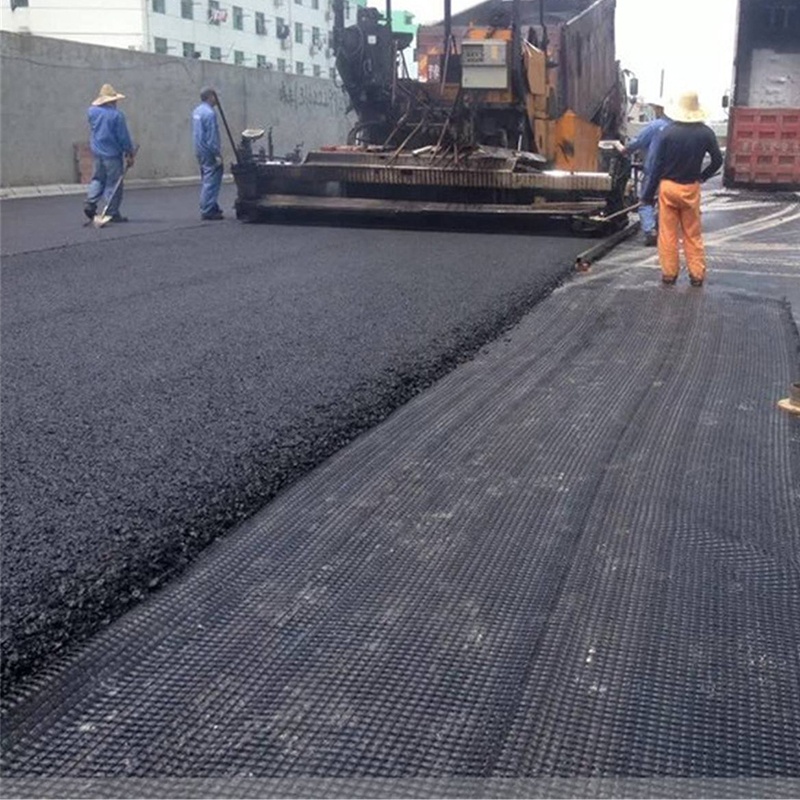

1) Maintenance and reinforcement of old asphalt road.
2) Rebuild old cement concrete road into composite road, restrain reflection crack caused by different block contraction.
3) It has widely applied in road renovation and expansion project, prevents cracks along the joint position caused by uneven
sedimentation.
4) It is used for soft sub grade reinforcement. The geogrid will help the water infiltration and soil concretion, restrain
subsidence effectively, and decentralize stress evenly, enhance overall strength of the roadbed.
