Product Description
Steel plastic (convex node) geogrid has changed the disadvantages of ordinary geogrid nodes with only a small peeling force (30N), easy cracking of welding points, causing construction difficulties, and reducing the effect of preventing lateral displacement. It is a further improved product. Due to changes in material ratio and construction technology, the peeling force of welding joints reaches 500N-600N, effectively changing the above shortcomings of traditional steel plastic geogrids. Due to the protruding nodes at the welding site, it is called a convex node steel plastic geogrid, and the academic name is node reinforced steel plastic geogrid
Detailed Photos
Technical index
| Project | TGDG30 | TGDG50 | TGDG80 | TGDG100 | TGDG120 | TGDG150 |
Vertically Limited-Rally
(KN/m)≥ | 30 | 50 | 80 | 100 | 120 | 150 |
| Vertically Limited elongation ratio(%)≤ | 3 | 3 | 3 | 3 | 3 | 3 |
| Elongation at 1% of the Rally (KN/m)≥ | 23 | 38 | 63 | 81 | 98 | 125 |
High-strength steel-plastic biaxial( vertical and horizontal) geogrid
| Project | TGSG30-30 | TGSG45-45 | TGSG60-60 | TGSG80-80 | TGSG100-100 | TGSG120-120 |
Two-way Limit-Rally
(KN/m)≥ | 30 | 45 | 60 | 80 | 100 | 120 |
Two-way Limit elongation
(%)≤ | 3 | 3 | 3 | 3 | 3 | 3 |
Elongation at 1% of the
Rally (KN/m)≥ | 23 | 36 | 48 | 63 | 81 | 98 |
Product Application

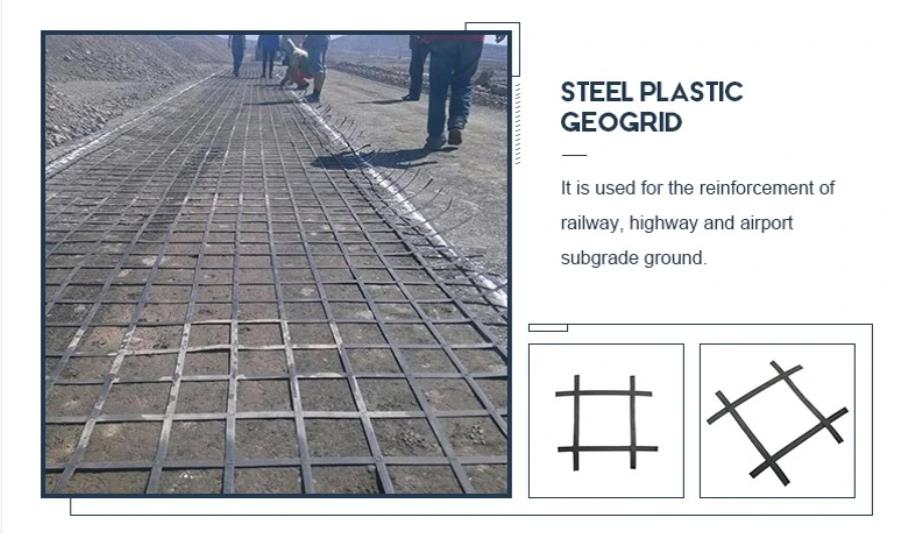

1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;
2. Reinforcement of road foundations;
3. Retaining walls;
4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.
